Heat tolerance functions as a fundamental requirement for industrial waxes because each kind of wax possesses different melting thresholds.
Paraffin wax, for example, shows its melting stage between 120-160 degrees Fahrenheit whereas microcrystalline wax operates in the 145-195 degrees Fahrenheit temperature range.
The selection of suitable waxes depends primarily on their melting point because their temperature profile influences their operational success in all applications including candle manufacturing, cosmetic production and food packaging.
In this article we are going to cover various high melting point waxes and their special features while showing how to select the best option for each project.
Temperature changes reshape wax's molecular structure. As It cools, wax molecules line up and form solid crystalline structures. Their thermal motions slow, increasing the chances for molecular contact. The molecules move closer together, which strengthens their intermolecular forces and leads to clumping.
Wax releases heat energy when it crystallizes - scientists call this an exothermic reaction. The temperature needed to dissolve wax (WDT) usually runs 5-28°C higher than the temperature where wax first appears (WAT) across different wax types.
Wax properties depend heavily on how molecules arrange their branches. The arrangement of straight-chain molecules produces tight packing that results in higher melting points yet branched or shorter chains fail to pack efficiently thus melting at lower temperatures.
The purity level of a wax substance significantly determines its melting point temperature. The presence of impurities disrupts crystal formation which enables molecules to separate more easily thus reducing the melting point.
External conditions affect the speed at which wax reaches its melting point but they do not alter the actual melting point value. The melting rate of wax depends on three main factors which include humidity levels as well as room temperature and air movement speed.
The crystal arrangement of wax plays a vital role in its structure. Wax substances with tightly packed crystal arrangements need elevated temperatures before they can melt. During solidification the cooling speed determines the crystal development that ultimately impacts the future melting characteristics of the wax.
Paraffin wax makers create specialized grades that work great in high-temperature applications. These waxes go through careful refinement to reach specific melting points that match different industrial needs.
Fully refined paraffin wax stands out because of its exceptional purity and controlled properties.
Manufacturers use solvent dewaxing and hydrogen refinery processes to produce wax with oil content below 0.5%. This refined grade shows a white crystalline structure while solid and becomes water-white and clear once melted.
The melting points of fully refined paraffin usually range from 58°C to 68°C. Notwithstanding that, some grades can hit temperatures up to 72°C with advanced refining techniques. These waxes show great chemical stability, thermal resistance, and toughness.
Microcrystalline wax performs better than standard paraffin in melting point and structural integrity. This wax hits melting points between 88°C to 96°C and works well in demanding applications.
The wax comes in three main grades based on melting points and hardness:
Microcrystalline wax has higher amounts of iso paraffinic and naphthenic hydrocarbons. This makeup creates finer crystal structures than regular paraffin wax, which directly affects its physical properties and performance.
Synthetic polymer waxes are the best in high-temperature wax technology. These specialized polymers show melting points from 95°C to 130°C. Manufacturers can customize these waxes for specific applications by controlling molecular weight and selecting particular grades.
Synthetic waxes' molecular weights range from 1,000 to 20,000. These waxes split into specific grades after refinement based on what they'll be used for.

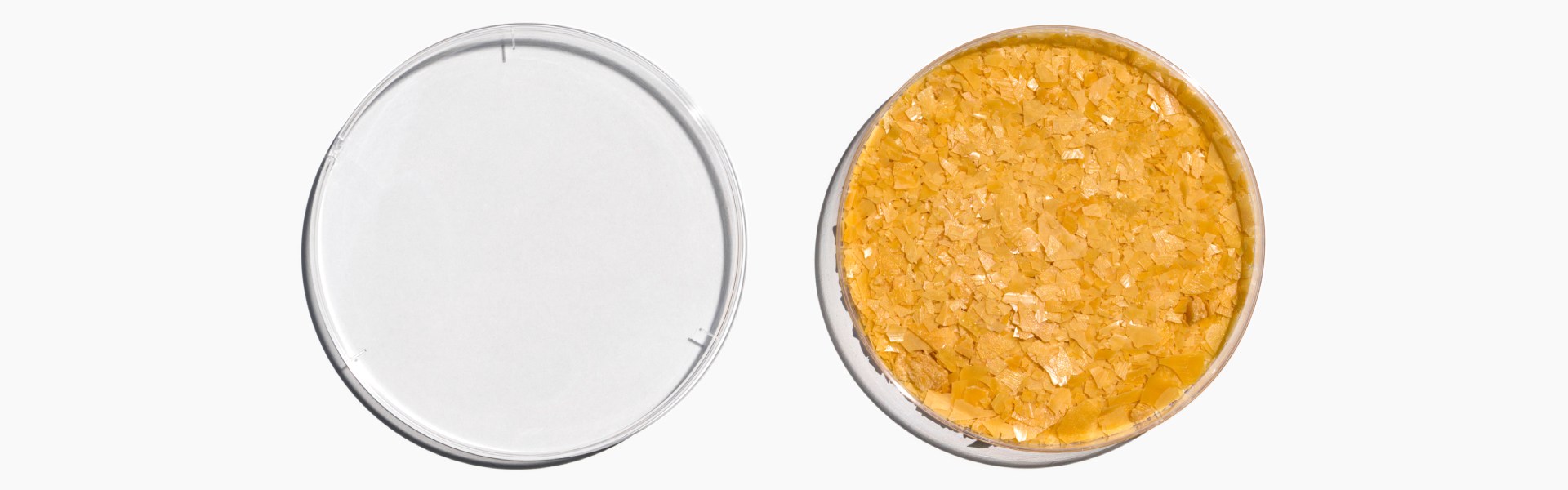

The natural wax known as Carnauba contains primarily esters together with fatty acids and long-chain alcohols. Its dense crystalline molecular structure gives carnauba wax both high hardness and thermal resistance properties.
The high concentration of esters enables molecules to arrange tightly which results in increased stability and durability.
The melting point of Carnauba wax extends between 80-88°C (176-190°F). The high temperature threshold of this natural wax ranks it among the most durable natural waxes
The rigid molecular arrangement along with powerful intermolecular forces stop the wax from melting prematurely which results in superior heat resistance compared to other waxes.
Ouricury wax contains long-chain fatty acids, esters and alcohols that create a rigid crystalline structure which resembles carnauba wax. The molecular alignment within the wax substance creates powerful intermolecular bonds which enhance its resistance to shape change at temperatures between moderate and high.
Its melting point ranges from 81-84°C (178-183°F) which positions it as one of the highest-melting plant-based waxes. The dense molecular arrangement of this substance needs elevated temperatures to break intermolecular forces before it transforms into a liquid state thus providing excellent thermal stability.
Measuring wax melting points accurately needs specialized testing methods that give precise temperature readings. Modern labs use two main techniques to determine how high-temperature waxes melt.
DSC excels as an analytical tool that measures heat flow in and out of wax samples during temperature changes. This method is used to characterize physical and chemical changes through endothermic or exothermic processes.
DSC reveals several key aspects of wax behavior:
The Ring and Ball method, developed in the 1910s, remains a life-blood technique to determine wax softening points. This test works best for materials with softening points between 30°C to 157°C.
Scientists follow these steps precisely:
Each method brings unique benefits. DSC delivers detailed thermal analysis with small sample amounts and excellent accuracy. The Ring and Ball test provides simplicity and widespread standardization across industries. Application requirements and measurement precision needs often determine which method works best.
High melting point waxes are the foundations of many industrial processes that need temperature stability above 80°C. These specialized waxes are a great way to get specific properties that work in a variety of sectors.
High melting point wax is a vital part of hot melt adhesive formulations. These adhesives contain three main components:
They work better than other options in solvent-free and waterless applications. Adding high melting waxes speeds up the setting process, which helps production lines run faster in smaller assembly spaces.
These waxes bring several benefits to adhesive applications:
The coating industry needs high melting point waxes when heat resistance matters most. These waxes create protective barriers against corrosion in temperatures from 125°C to 850°C.
Microcrystalline wax stands out by creating water-resistant coatings that protect against environmental damage.
High melting point synthetic waxes (above 80°C) provide temporary protection for metals during wet chemical processes.
These waxes show:
High melting point wax is a vital dielectric material in electronic industries. These waxes create effective barriers between conductive elements and stop electrical leaks in complex electronic parts. They actively repel water, which helps protect against short circuits.
The thermal properties of these waxes help manage heat in electronic components. They distribute heat effectively to:
High melting point waxes are vital materials that manufacturers can't do without in modern industrial applications. Our study of wax molecular behavior shows how temperature affects crystalline structures and melting characteristics. This knowledge explains why microcrystalline and synthetic polymer waxes have better thermal stability than others.
Different types of high melting point waxes serve specific purposes. Fully refined paraffin stands out because of its exceptional purity while microcrystalline wax provides better structural integrity. Synthetic polymer waxes can withstand the highest temperatures, making them perfect for demanding industrial environments.
DSC and Ring and Ball tests give reliable information about wax performance. These are significant tools to control quality and pick the right wax for each use. The precise measurements help select the best wax for everything from hot melt adhesives to electrical insulation.
The industrial applications we looked at reveal how these specialized waxes tackle complex manufacturing challenges. They play a key role in adhesives, coatings, and electrical insulation. This shows how versatile and important they are in modern industrial processes.
Manufacturers who understand these applications can pick the right wax type based on temperature needs and get the best performance from their products.
